Description

Complete GT Gears VW T3 4 speed Drivetrain includes GT 4 speed Mainshaft 091 311 101 C and 1st, 2nd, 3rd, 4th gears. Plus Free steel caged bearings

“Guard Transmission utilizes the most advanced and modernized CNC gear-cutting equipment available. All of our gears are cut with class AA grade gear hobs and feature the latest F1 gear profiles. Contact pressure angles are optimized for maximum strength and each gear tooth has a very prominent “tip relief” placing all contact directly in the center of the tooth. This special feature eliminates any premature wear found in all prior gear designs., which typically occurs at the base and tip of each gear tooth.

All gears offered by Guard Transmissions are shot-peened to Aircraft specifications, which normally doubles the service life (in medium stress applications).

Stronger, quieter longer-lasting. It has always been the goal of Guard Transmission to offer gearsets that are so superior in quality, that even the most discerning European race teams would take notice. These gears are now in stock.

Guard gears feature modern F1 tooth profiles. Helix and pressure angles are optimized for maximum strength. Each gear tooth has a very prominent “tip relief”, placing all contact directly in the center of each tooth. This reduces premature wear, typical in race use. Guard gears are also the only aftermarket gears to utilize Porsche ® factory German-made synchro teeth. Our billet mainshaft sets have a 30% higher torque rating than standard factory main shafts,”

The kit includes the following

1 Gears VW T3 4 speed  Mainshaft and 1st & 2nd gears 091 311 101 C Kit .

They are available in the following ratios

3.778 (9:34) x 2.063 (16:33)
3.778 (9:34) x 1.941 (17:33)
3.667 (9:33) x 1.882 (17:32)

plus

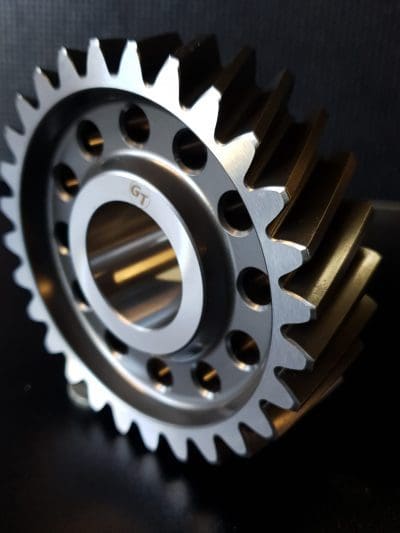

1 GT HD Gears 3rd gear set

These come in a range of sizes 1.364 (22:30), 1.318 (22:29), 1.273 (33:42), 1.228 (35:43), 1.227 (22:27), 1.171 (35:41), 1.143 (35:40), 1.125 (24:27), or 1.080 (24:26)

plus

1 GT HD Gears 4th gear set

These come in a range of sizes.967 (90:29), .925 (40:37), .881 (42:37), .857 (42:36), .857 Straight Cut (35:30), .837 (43:36), .821 (39:32), .812 (32:26), .781 (32:25), .733 (30:22), .727 Straight Cut (33:24), .697 (33:23) please specify which ratio you require on your order and if you need any assistance in deciding which ratio suits you best contact us here.

plus

Free steel caged bearings kit for all Gears

For more info click here
